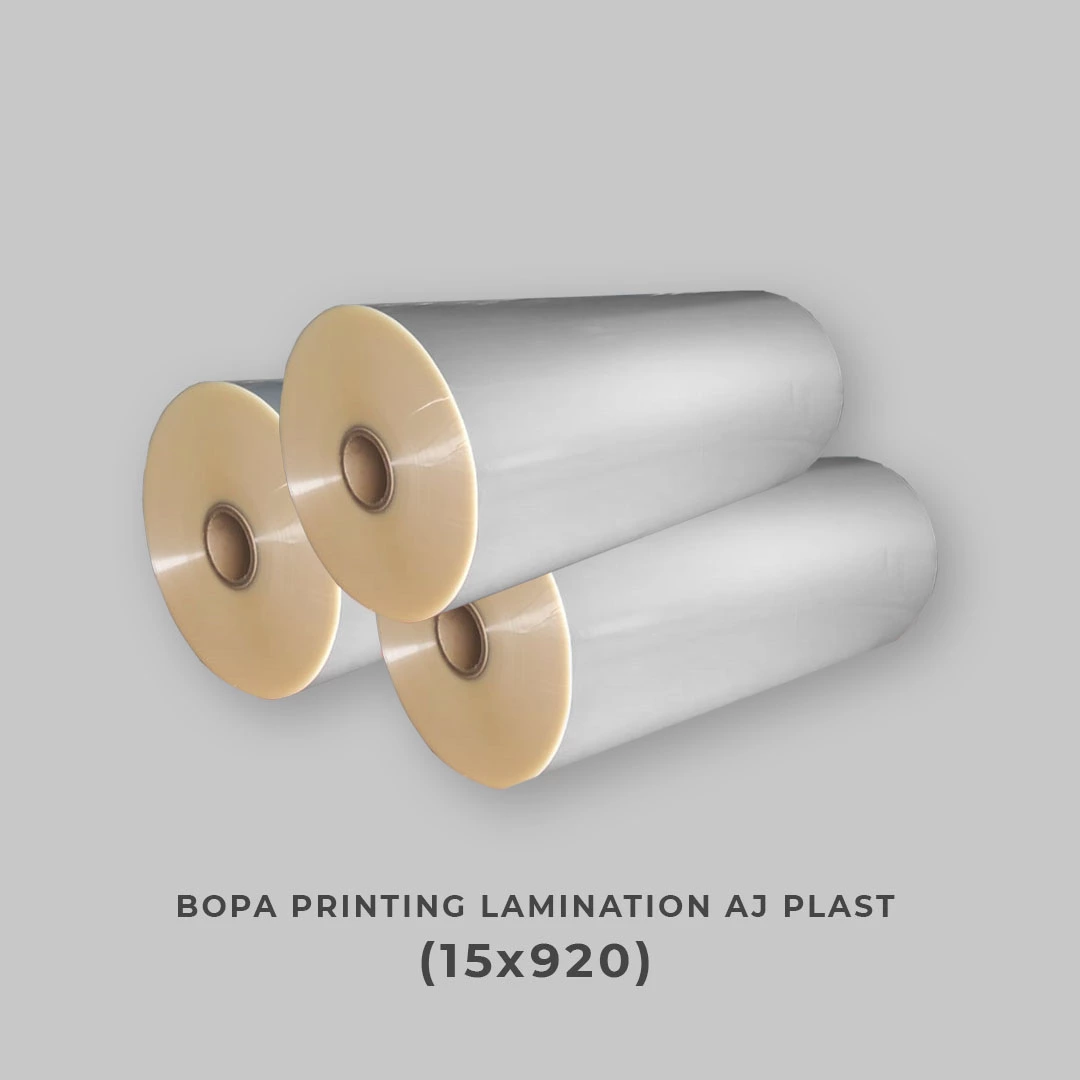

BOPA PRINTING LAMINATION AJ PLAST (15x920)
JAVA
BOPA
Printing Lamination
Colorpak Flexible Indonesia
Colorpak Flexible Indonesia
Lihat Profil SellerHigh-Performance Biaxially Oriented Polyamide Film for Flexible Packaging and Lamination
The BOPA Printing Lamination Film AJ Plast (15x920) is a premium-grade biaxially oriented polyamide (BOPA) film engineered for high-end printing and lamination applications. Manufactured by AJ Plast Public Co., Ltd., this film delivers superior mechanical strength, excellent dimensional stability, and outstanding barrier performance against moisture and oxygen. Its high transparency and gloss enhance the visual appeal of packaged goods, making it ideal for food and non-food flexible packaging. The film demonstrates excellent printability and adhesion when laminated with materials such as PET or PE, enabling the creation of robust multi-layer structures. Free from animal derivatives, this product supports sustainable and eco-friendly packaging solutions across diverse industries.
Specifications
- Thickness: 15 µm (ISO 4593)
- Width: 920 mm (Manufacturer Specification)
- Tensile Strength (MD): Exceeds 180 MPa (ISO 527)
- Elongation at Break (MD): Approx. 200% (ISO 527)
- Tear Resistance: High (ASTM D1922)
- Moisture Vapor Transmission Rate (MVTR): Low (<5 g/m²·24h) (ASTM E96)
- Oxygen Permeability: Very low (<5 cm³/m²·atm·day) (ASTM D3985)
- Surface Gloss: High (>90 GU at 45°) (ISO 2813)
Applications
- Flexible food packaging (snacks, confectionery, dried foods)
- Vacuum and retort packaging
- Laminated films for labels and decorative packaging
- Industrial and medical packaging requiring high durability
- Multi-layer barrier films for extended shelf-life products
Advantages
- Excellent barrier properties against moisture and oxygen
- High tensile strength and tear resistance
- Superior dimensional stability due to biaxial orientation
- Outstanding printability and surface gloss
- Strong lamination adhesion with PET, PE, and other substrates
- Environmentally friendly – no animal-derived components
Processing Conditions
- Recommended lamination temperature: 90–110°C
- Optimal printing conditions: Gravure or flexographic printing with solvent-based or water-based inks
- Drying temperature: 60–80°C
- Web tension control recommended during unwinding and lamination
Regulatory Compliance
- Complies with food contact regulations (EU 10/2011 and FDA 21 CFR)
- REACH compliant
- Free from animal-derived ingredients (suitable for Halal/Kosher applications)
Packaging Information
- Supplied in jumbo rolls
- Core size: 3-inch (76 mm)
- Standard roll width: 920 mm
- Custom slitting available upon request
Storage Conditions
- Store in a cool, dry place away from direct sunlight
- Ideal storage temperature: 15–25°C
- Relative humidity: 40–60%
- Shelf life: 12 months from date of manufacture if stored properly
Safety Information
- Non-hazardous under normal handling conditions
- Avoid inhalation of dust when cutting or slitting
- Refer to Safety Data Sheet (SDS) for detailed handling and disposal instructions
Notes From Seller:
- The amounts above are in kg and purchases must be a multiple of 1 Roll
- Stock availability depends on your shipping area
- Prices do not include VAT
- 1 Roll is equivalent to +/- 96.05 Kg. (Theoretical Weighting)
