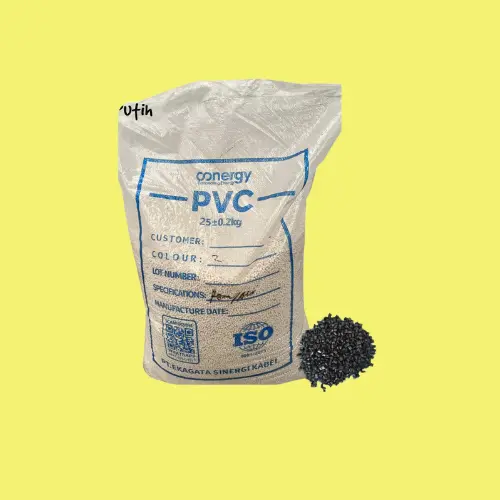

PVC Insulation 70 Hitam
JAVA
PVC Compound
Extrusion
Ekagata Sinergi Kabel
0 (0 ulasan)
Ekagata Sinergi Kabel
Lihat Profil SellerHigh-performance black PVC compound for electrical cable insulation
PVC Insulation 70 Hitam is a premium-grade black polyvinyl chloride (PVC) compound engineered specifically for electrical cable insulation applications. Formulated to meet strict thermal and electrical performance requirements, this compound offers excellent dielectric properties, flame retardancy, and long-term stability at operating temperatures up to 70°C. The black pigment provides UV resistance and enhanced durability for both indoor and outdoor installations.
Specifications
- Base Polymer: PVC (Polyvinyl Chloride) (ASTM D1784)
- Color: Black (Visual Inspection)
- Max Operating Temperature: 70°C (IEC 60216)
- Density: 1.35 - 1.45 g/cm³ (ASTM D792)
- Tensile Strength: ≥10 MPa (ISO 527)
- Elongation at Break: ≥150% (ISO 527)
- Volume Resistivity: ≥10¹³ Ω·cm (IEC 60093)
- Flame Retardancy: Self-extinguishing (UL 1581)
- Thermal Stability: ≥200°C (initial) (TGA)
Applications
- Insulation for low and medium voltage power cables
- Communication and control cable sheathing
- Automotive wiring harnesses
- Industrial control cables
- Indoor and outdoor electrical installations
Advantages
- Excellent electrical insulation properties
- High flame retardancy and low smoke emission
- Superior UV and weather resistance due to carbon black pigment
- Stable performance at continuous 70°C operation
- Easy processing via extrusion
- Cost-effective alternative to cross-linked polyethylene
Processing Conditions
- Extrusion Temperature: 160°C - 190°C
- Barrel Zone 1: 160°C
- Barrel Zone 2: 175°C
- Barrel Zone 3: 185°C
- Die Temperature: 180°C
- Cooling Rate: Controlled water bath, 20-40°C
Regulatory Compliance
- REACH compliant
- RoHS compliant
- IEC 60502-1
- UL 1581
- ISO 9001 certified
Storage Conditions
- Store in dry, well-ventilated area
- Keep away from direct sunlight and heat sources
- Shelf life: 12 months when stored under recommended conditions
Safety Information
- Handle in accordance with SDS
- Avoid inhalation of dust during handling
- Use appropriate PPE including gloves and safety glasses
- No known hazardous decomposition products under normal processing
| Brand | Ekagata Sinergi Kabel |
|---|---|
| Manufacturer | Ekagata Sinergi Kabel |
