Lihat Profil SellerHigh-Strength Woven Geotextile for Soil Stabilization and Erosion Control

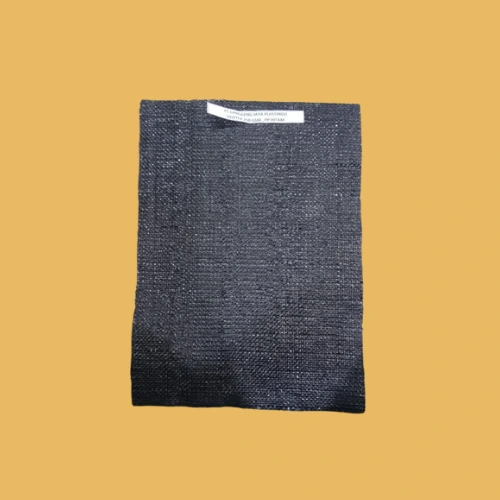

GEOTEX WOVEN BLACK GRAMASI 150 is a high-performance woven geotextile made from polypropylene (PP) fibers, designed for civil engineering and infrastructure applications. With a grammage of 150 g/m² and a black coloration for UV resistance, this geotextile provides excellent tensile strength, puncture resistance, and filtration properties. Ideal for road construction, landfill liners, erosion control, and drainage systems, it ensures long-term durability in harsh outdoor environments.
Specifications
- Grammage: 150 g/m² (ASTM D5261)
- Width: 4 meters (Manual Measurement)

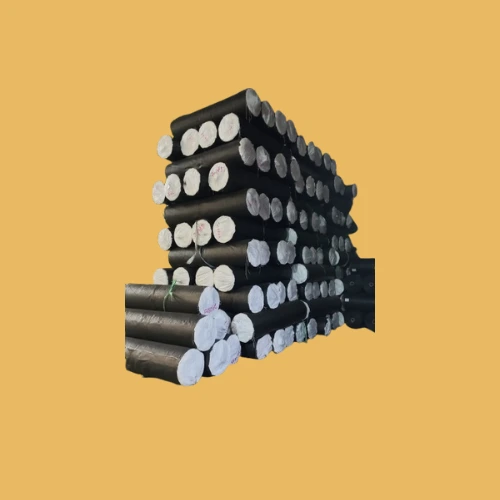

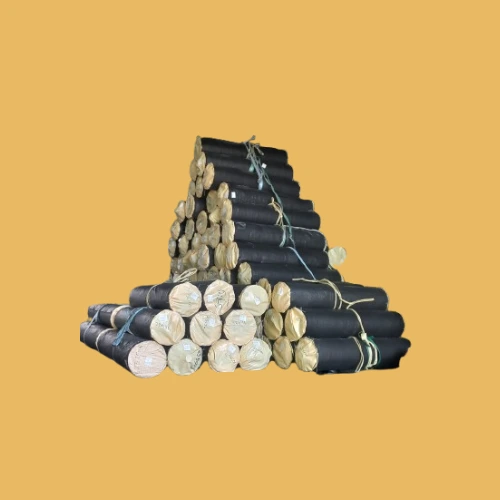

- Length per Roll: 200 meters (Manual Measurement)
- Material: Polypropylene (PP) (FTIR)
- Color: Black (Visual Inspection)
- Tensile Strength (MD): ≥ 25 kN/m (ASTM D4595)
- Tensile Strength (CMD): ≥ 20 kN/m (ASTM D4595)
- CBR Puncture Resistance: ≥ 1200 N (ASTM D6241)
- Water Permeability: ≥ 10 L/m²/s (ASTM D4491)
- UV Resistance: ≥ 80% retention after 500 hrs (ASTM D4355)
Applications
- Road and highway construction
- Railway ballast separation
- Landfill liner systems
- Erosion control on slopes and embankments
- Drainage systems and filter layers
- Retaining wall backfill
- Airport runway sub-base reinforcement
Advantages
- High tensile strength for load-bearing applications
- Excellent filtration and separation properties
- UV-stabilized black color for extended outdoor durability
- Chemical and biological resistance
- Cost-effective solution for large-scale civil projects
Processing Conditions
- Install on prepared, debris-free subgrade
- Avoid sharp objects during handling
- Overlap seams by minimum 30 cm for continuity
- Cover immediately with aggregate or soil to prevent UV degradation
- No welding or sewing required — mechanical fastening recommended
Regulatory Compliance
- ASTM D4355 (UV Resistance)
- ASTM D4595 (Tensile Strength)
- ASTM D5261 (Grammage)
- ASTM D6241 (CBR Puncture)
- ISO 10319 (Geotextile Tensile Properties)
Storage Conditions
- Store in dry, shaded area away from direct sunlight
- Keep off the ground on pallets
- Shelf life: Up to 5 years when stored properly
Safety Information
- Handle with gloves to avoid minor abrasions
- No hazardous fumes or chemicals released during installation
- Refer to SDS for full safety details
| Brand | Langgeng Jaya Plastindo |
|---|---|
| Manufacturer | Langgeng Jaya Plastindo |
